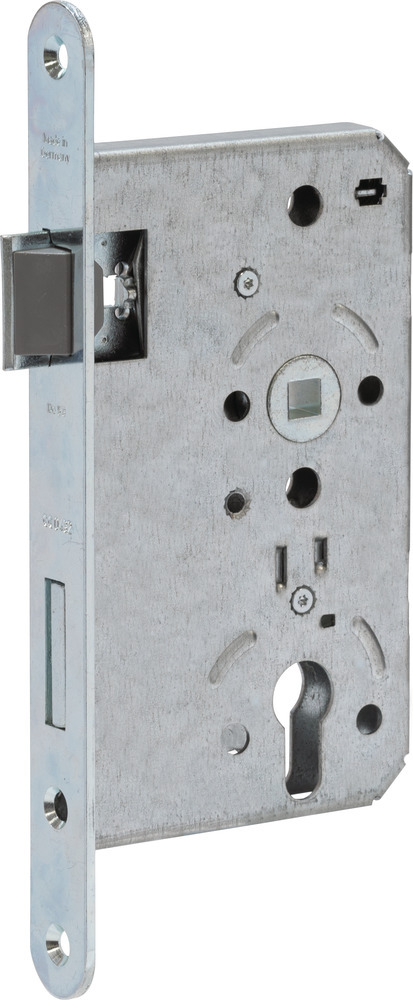

MORTICE LOCK FOR FIRE DOORS
The mortice lock EFS PZ with effective silent latch ensures security and low-noise latching of steel and fire doors.
This mortice lock provides a high level of security with its zinc-plated steel bolt. It has been tested in accordance with DIN 12209:2004 and is therefore suitable for use in fire doors. The latch, which is made of metal and has a high-quality plastic core, snaps shut quietly when the door is closed. The door can then be locked using a key or knob - depending on which lock cylinder you use. The double turn bolt throw is 11 mm, or 22 mm after turning the key the second time. The MPA tested and monitored lock combines the aspects of security and convenience through the high material quality of all product parts as well as the noise-reducing silent latch. The EFS PZ is available for DIN-left and DIN-right doors. The distance measurement is 72 mm, the backset 65 mm and the width of the zinc-plated steel forend 24 mm.
| Specifications | |
|---|---|
| - | - |
| Dornmaß | 65.000 MMT |
| Verpackungseinheit | 3.000 |
| Entfernungsmaß | 72.000 MMT |
| Artikelgruppe | 18.000 |
| Stulpform | angular |
| Stulplänge | 235.000 MMT |
| Schlosssteuerung | Door cylinder |
| Anzahl mitgelieferte Schlüssel | without key |
| Öffnungsrichtung | left |
| Security Level HaSi | 7.000 |
| Weight | 676.000 GRM |
| Stulpbreite | 24.000 MMT |
| Färbung | zinc plated |
| Einsatz und Anwendung 01 | For steel and fire doors |
| Einsatz und Anwendung 02 | When the door is closed, only the whisper silent is engaged |
| Einsatz und Anwendung 03 | The bolt of the mortice lock only locks the door when the door cylinder is used |
| Technologie 01 | tested according to DIN 12209:2004 |
| Technologie 02 | Silent latch made of metal with high-quality plastic core to reduce noise when closing |
| Technologie 03 | Latch throw 12mm |
| Technologie 04 | Steel bolt, zinc-plated |
| Technologie 05 | Bolt throw 11 / 22 mm (two turns) |
| Technologie 06 | Zinc-plated sheet steel lock case |
| Technologie 07 | MPA tested and monitored |
| Technologie 08 | Lock body 165 x 98mm |
| Technologie 09 | Steel forend 24 x 235mm, zinc-plated |
| Varianten 01 | DIN left; DIN right |
| ABUS | |
| Mortice lock for steel/fire doors | |
| ABUS | |
| false | |
| Item No. | 97490 |
| All items are original Abus products. |
